Table Header Format
Table header defines how the incoming data is interpreted and laid out in the table. Header is defined with a simple JSON array containing description of columns.
[
{
"id": "<source data field>",
"text": "<name of the column>",
"width": <optional: fixed width in pixels>,
"alignment": "<optional: alignment within the column: left|right>"
},
<any number of additional descriptors>
]
For example, consider the following configuration:
[
{ "id": "index", "text": "#", "width": 30 },
{ "id": "key", "text": "Key", "width": 80 },
{ "id": "text", "text": "Summary", "alignment": "left" },
{ "id": "points", "text": "SP", "width": 60 },
{ "id": "labels", "text": "Label", "width": 80 }
]
When provided with this data:
[
{
"index": 1,
"key": "DMC-39",
"labels": "primary",
"points": 1,
"text": "Correct Blue Component"
},
{
"index": 2,
"key": "DMC-38",
"labels": "secondary",
"points": 2,
"text": "Correct Blue Feature"
},
...
]

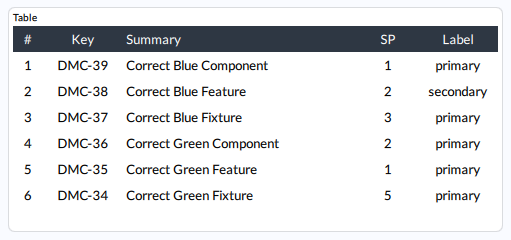

It will produce:
